Use CMSIS-Compiler

The following steps are required to install the ARM::CMSIS-Compiler pack and to use the software components that are shipped with the CMSIS-Pack.

Note

The installation and usage instructions are assuming you are using a CMSIS-Toolbox based environment.

Pack installation

Add the ARM::CMSIS-Compiler pack to your installation:

cpackget add ARM::CMSIS-Compiler

Alternatively, you can download the latest version from the CMSIS-Compiler page.

Component selection and usage

1. In your IDE, open the Manage software components dialog.
2. If you cannot see the CMSIS-Compiler component, select to display All installed packs.
3. You must select the component CMSIS-Compiler::CORE and at least one additional API.

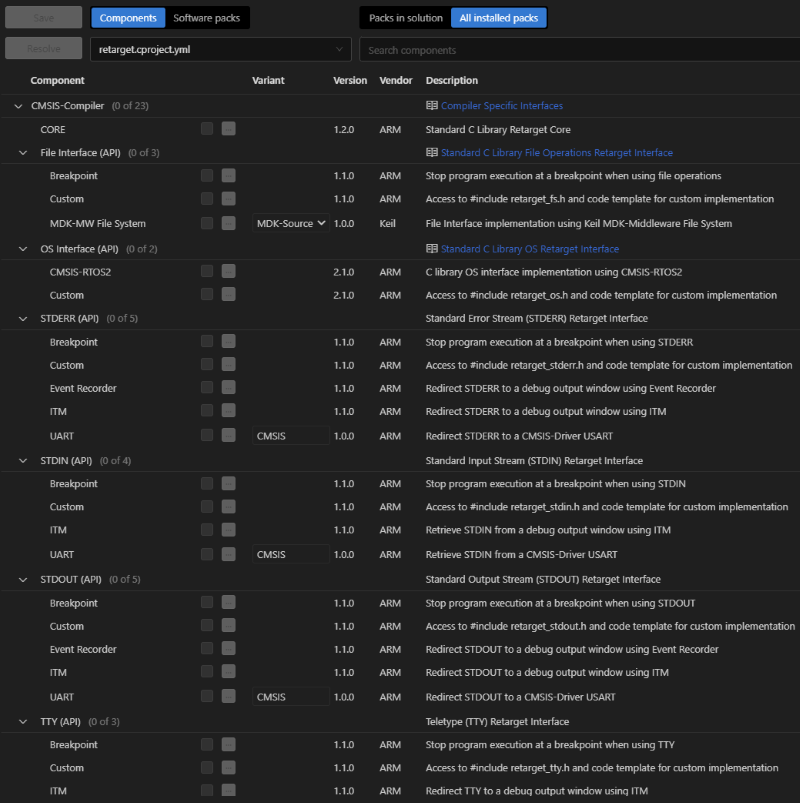

Manage software components

Note

Refer to the sections Low-level I/O and Multithreading Support Retarget for more information about the retargeting options.
